Jacket : 3.5mm Grey, Black
Conductor : 0.08 X 60 (coil)
Lead Wire : Oil resistant vinyl jacket
Response Time : Less than 1msec
Insulation : Up to 50MΩ at DC500V Between case
Endurance Voltage : For 1 Min under Ac1500V Between Case
Shock/Vibration : 30 G
Leakage Current : None
Temperature Range : -10∼ 60℃
Enclosure Rating : IP-67
Standard Lead wire is 1 meter long, Longer size are available by order

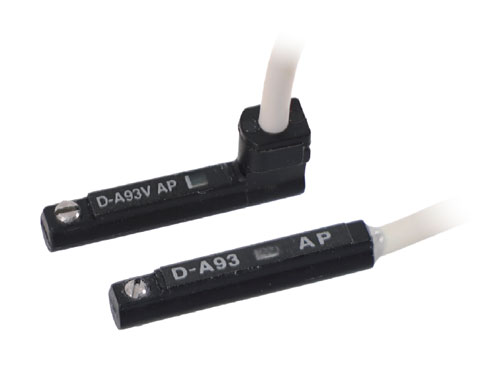

Specification | (AP) D-A 93 (V) | |
---|---|---|
Input Load | PLC, Relay | |
Loading Voltage | DC 24V | AC 110V |
Loading Current | 4-50mA | 5-20mA |
Contact Protect Circuit | None | |
int'l Voltage Drop | Below 2.7V | |
Signal Lamp | Red LED Emitting When S/W on |

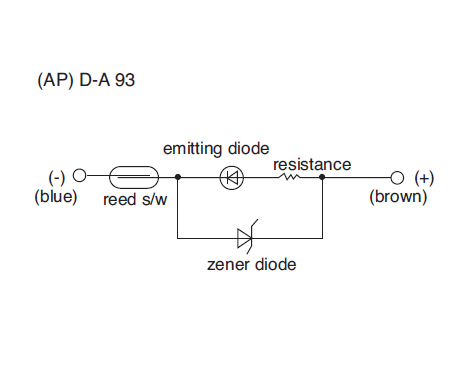

CONNECTION DIAGRAM

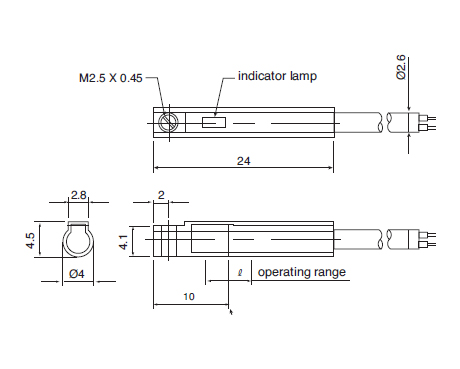

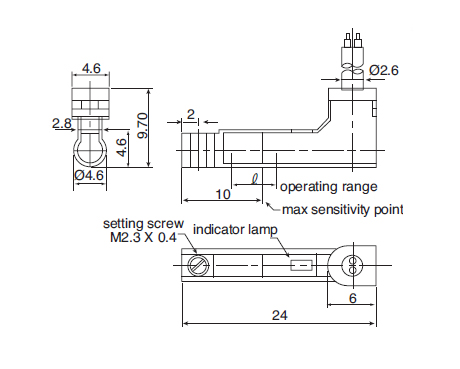

MAX SENSITIVITY POINT / OPERATING RANGE / DIMENSION
