[AP] D-A93[AP] D-A7□ SERIES[AP] D-C7□ SERIES[AP] D-A5□ SERIES[AP] D-Z73 , W13H[AP] D-5□ SERIES[AP] RO[AP] SO[AP] APC(FX-2)[AP] MA-1

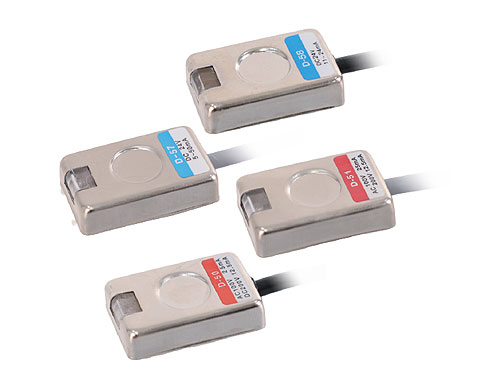

[AP] D-5□ SERIES
Jacket : 4.5mm Black, Grey
Conductor : 0.08 X 60 (coil)
Lead Wire : Oil resistant vinyl jacket
Response Time : Less than 1msec
Insulation : Up to 50MΩ at DC500V Between case
Endurance Voltage : For 1 Min under Ac1500V Between Case
Shock/Vibration : 30 G
Leakage Current : None
Temperature Range : -10∼ 60℃
Enclosure Rating : IP-67
Standard Lead wire is 1 meter long, Longer size are available by order
(AP) D-57, D-58 SPECIFICATION
| Specification | (AP) D-57 | (AP) D-58 |
|---|---|---|
| Input Load | PLC, Relay | |
| Loading Voltage | DC 24V | |
| Loading Current | 5-50mA | 10-100mA |
| Contact Protect Circuit | None | |
| int'l Voltage Drop | Below 2.7V | |
| Signal Lamp | Red LED Emitting When S/W on | |
(AP) D-50, D-51 SPECIFICATION
| Specification | (AP) D-50 | (AP) D-51 | |||
|---|---|---|---|---|---|
| Input Load | Relay | PLC, Relay | |||
| Loading Voltage | AC 110V | AC 220V | DC 24V | AC 110V | AC 220V |
| Loading Current | 5-25mA | 5-12.5mA | 5-50mA | 5-25mA | 5-12.5mA |
| Contact Protect Circuit | Builtede in | ||||
| int'l Voltage Drop | Below 1V | Below 2.7V | |||
| Signal Lamp | Lemp on When S/W off | Red LED Emitting when S/W on | |||

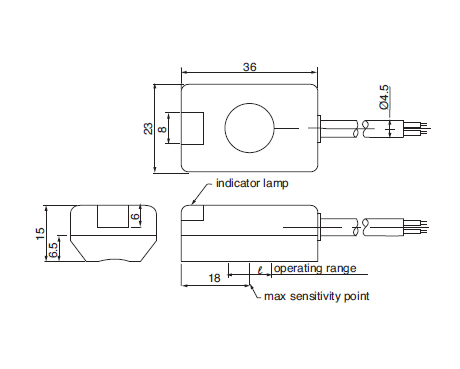

MAX SENSITIVITY POINT / OPERATING RANGE / DIMENSION

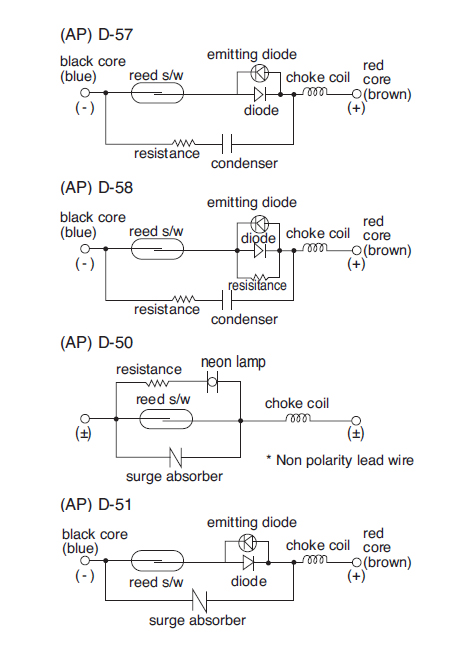

CONNECTION DIAGRAM
